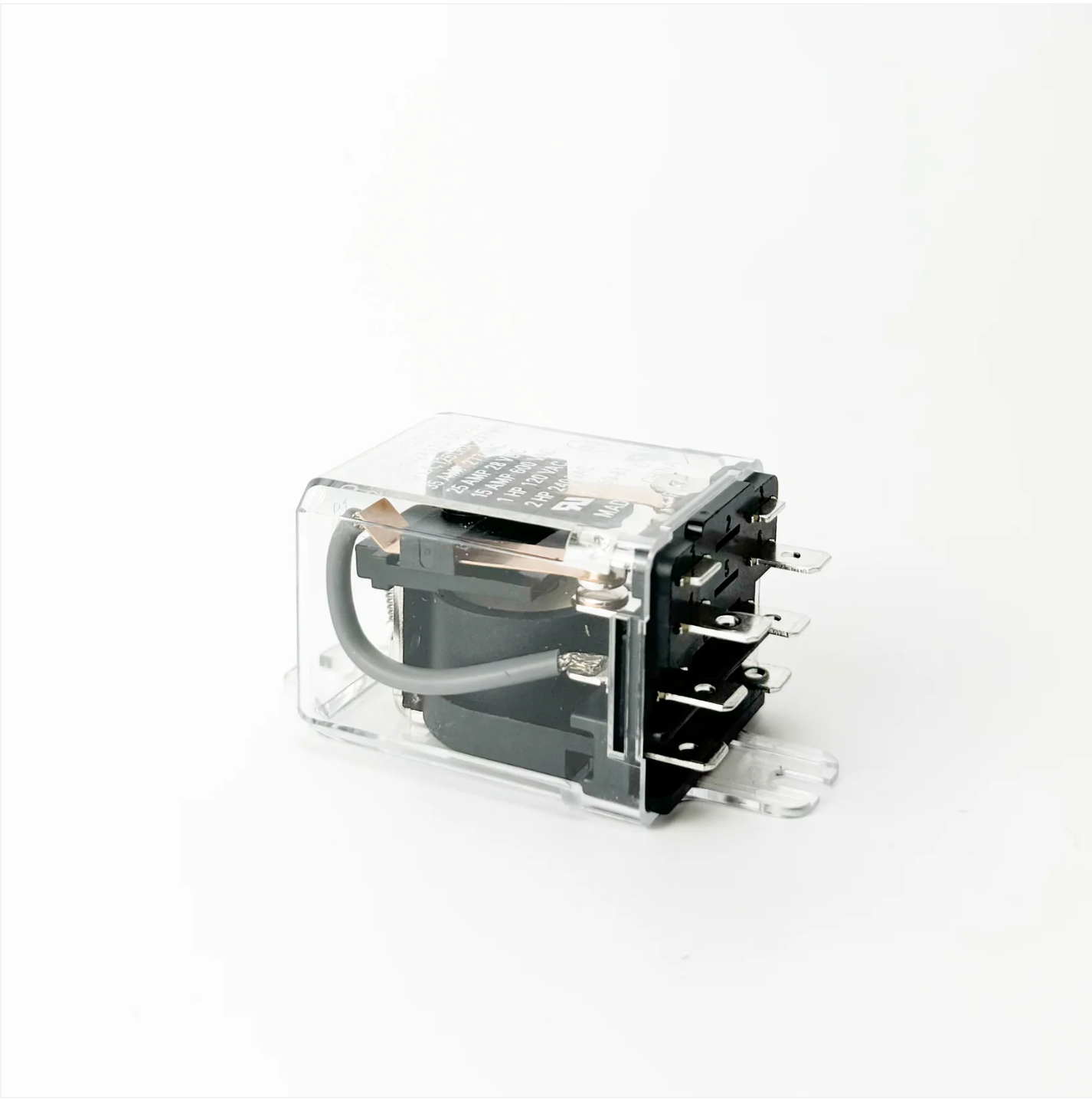

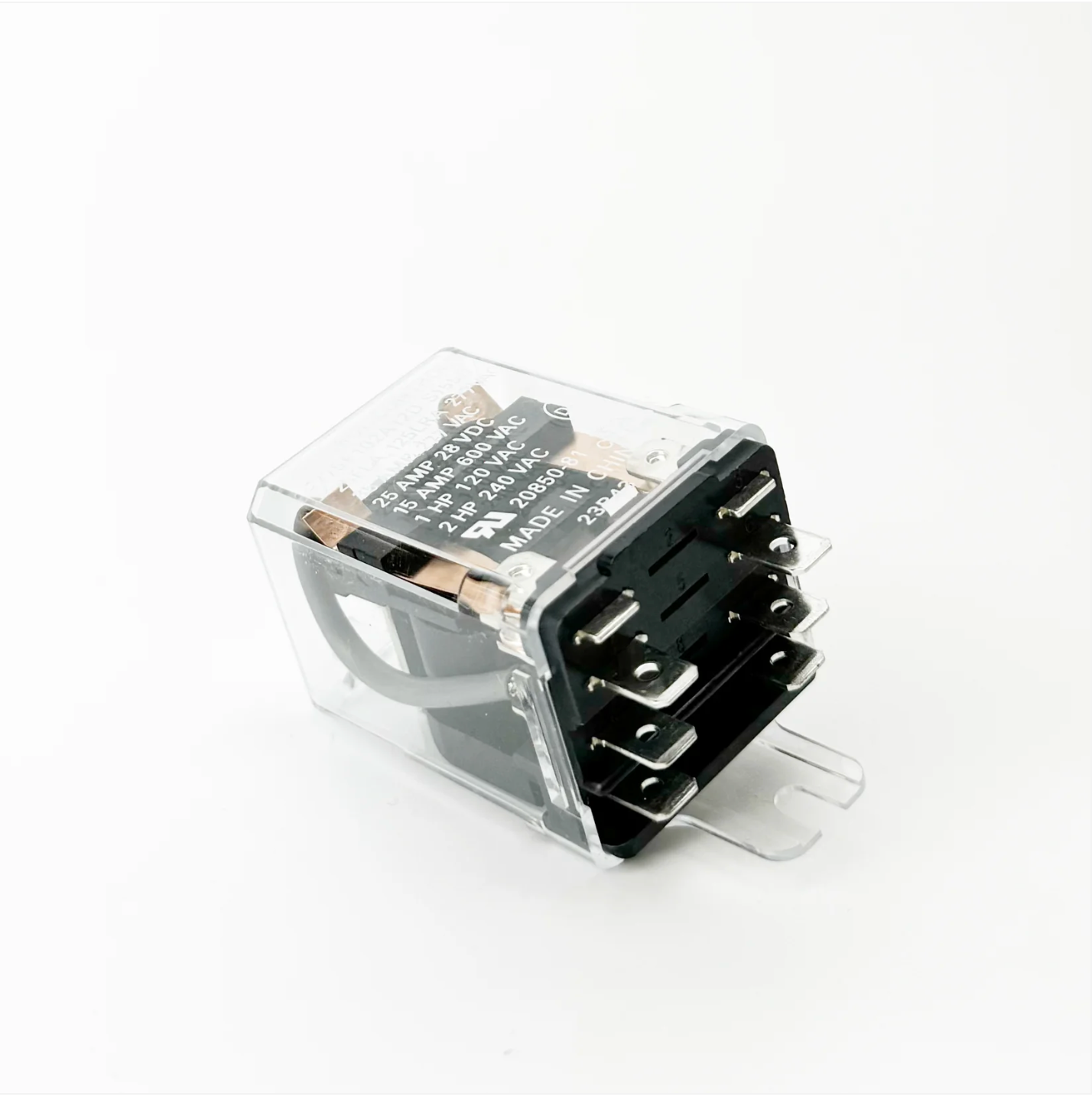

Fits models: 12V coil, 25amp Deltrol relays work in both 240V and 208V digital kilns
Size: 3" L x 1 1/2" W x 1 3/8" H
Using it: Genuine, Deltrol relays are typically found in older digitally controlled kilns.
These relays are OEM factory replacement for many older Skutt KM, digital kilns (KM 1027, KM 1227, KM 1018, etc.) with 5 fins on the top of the control box. If your control box has 6 fins you likely need the black relays (we have them!).
Typically one relay powers each ring, or section of kiln in a top-loader - a 3 section kiln (with 6 elements) will have 3 of these relays per kiln.
These are also factory relays found in many older Amaco front loading kilns and older Amaco/Excel top loading kilns.
These are direct factory replacements!
Can be found in: Skutt and Amaco/excel top-loading kilns with 5 fins at the top of the control box.
Skutt KM818, Skutt KM822, Skutt KM827, Skutt KM1018, Skutt KM1022, Skutt KM1027, Skutt KM1218, Skutt KM1222 and Skutt KM1227
Amaco EX-232, Amaco EX-257, Amaco EX-365, Amaco EX-329, Amaco EX-270, Amaco EX-353, Amaco EC-55, Amaco EC-55SF
Amaco AH-10SF, Amaco AH-25SF, Amaco AH-30SF
