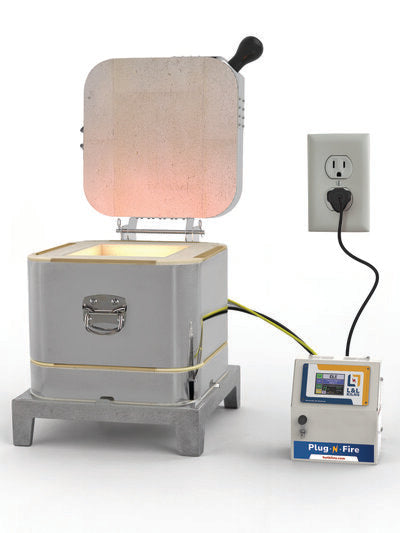

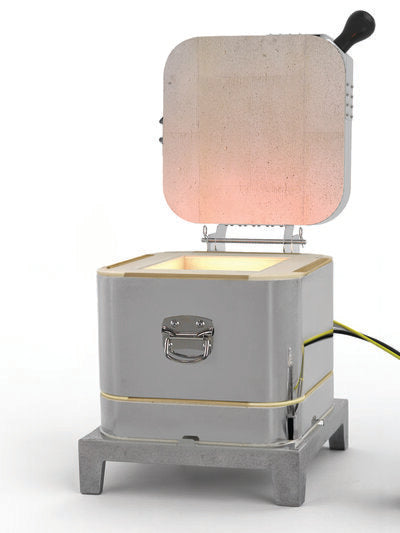

About the L&L Plug-n-Fire Kilns
Whether you're experimenting with a new glaze or purchasing your first kiln, the L&L Plug-n-Fire kiln offers the renowned durability and features of an L&L in a versatile, compact design at an entry-level price. This test kiln is perfect for any studio—simply plug it in and fire it anywhere. Ideal for pottery, glass, beadwork, jewelry metals, and more! This kiln can fire to Cone 10 on a standard 15-amp circuit, and draws only 12.5 amps. All L&L kilns are made-to-order and take approximately 15-20 weeks.
Furniture: Includes one 7" by 7" by 3/8" shelf and three 4" posts.
$100.00 flat rate freight shipping - This does not include add on services; lift-gate, call before services or delivery appointments. Please email info@allkilnparts.com if you'd like to add these services.
| Kiln model | Plug-n-Fire |
| Interior dimensions |
8"w x 8"d x 9”h, .33 cubic feet |
| Exterior dimensions |
16”w x 20”h |
| Elements | 1 |
| Thermocouples/Zones | 1 |
| Brick | 2.5” brick with 1” of back-up insulation |
| Weight | 77 lbs |
| Model | Watts | Volts | Phase | Amps | Wire Connection | Max Temp | Certification |
| Plug-n-Fire | 1500 | 120 | 1 | 12.5 |
5-15P Plug (15 amp, 120 volt) |
Cone 10, 2350F, 1290C |
Made for all markets except EU; Not CE certified; Not UL499 listed |
Electrical Specifications for Kilns
The table above outlines the available electrical specification choices for this kiln. It is crucial to select the appropriate wiring specifications when ordering the kiln to ensure its proper functioning. These specifications depend on the power supply to which you'll be connecting the kiln. Consult with your electrician to determine the correct voltage and phase for your specific kiln model. The voltage/phase selection directly impacts the amperage draw of the kiln and dictates the size of the necessary breaker. Remember that the kiln requires a breaker rated at 20% higher than the actual amperage draw. Ensure that your power supply can adequately support the kiln you intend to purchase. Additionally, the chart indicates whether the kiln requires a NEMA plug configuration or if it must be directly wired. Confirmation of voltage and phase selection is required in writing for all kiln orders. If you have any queries regarding this information, please don't hesitate to contact us at 215-768-1330 or info@allkilnservices.com.
