About the Easy-Fire series
The Easy-Fire series is the L&L flagship kiln. Perfect for classrooms and potters, this kiln is full of features making it one of the easiest to install, use, and maintain. All L&L kilns are made-to-order and take approximately 15-20 weeks.

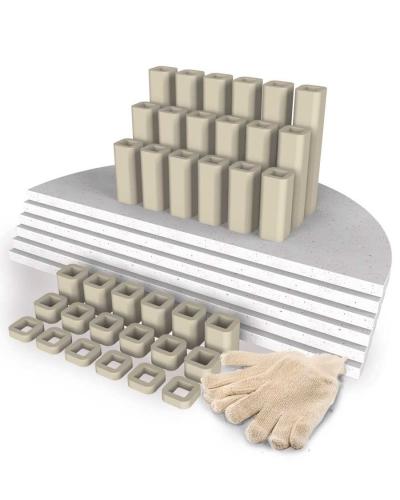

Optional furniture kit includes:
- Six 25 ½ ” half round shelves
- 36 square ceramic posts (6 each ½”, 1”, 2”, 4”, 6” & 8” high)
- One pair of heat resistant gloves
Furniture kit $795, Vent-Sure System $685.
$100.00 flat rate freight shipping - This does not include add on services; lift-gate, call before services or delivery appointments. Please email info@allkilnparts.com if you'd like to add these services.

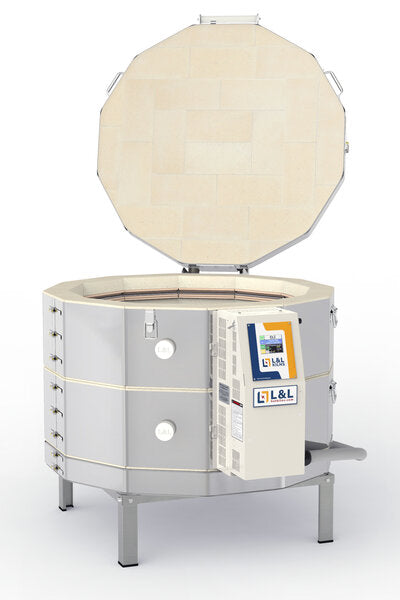

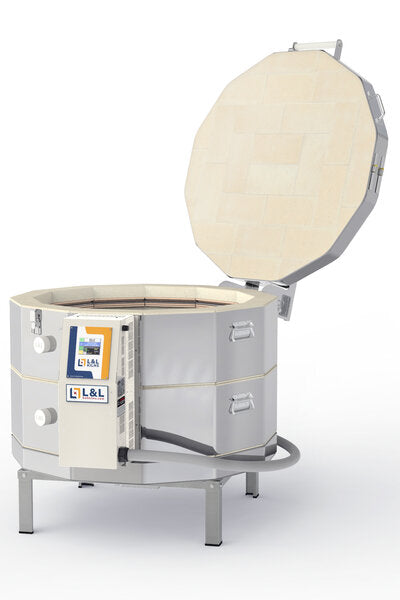

| Kiln model | e28S-3 |
| Interior dimensions |
28"d x 18"h, 6.8 cubic feet |
| Exterior dimensions |
35”w x 34.2”h |
| Sections | Two 9” high |

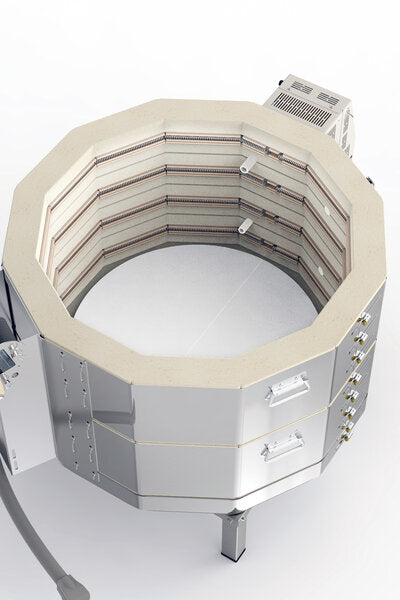

| Elements | 4 |

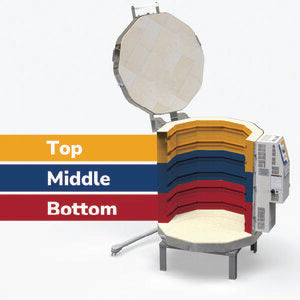

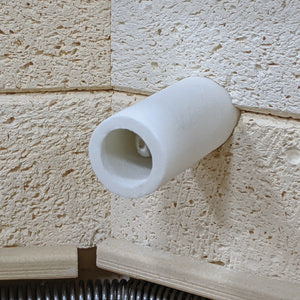

| Thermocouples/Zones | 2 |
| Brick | 3" |
| Weight | 350 lbs |
| Model | Watts | Volts | Phase | Amps | Wire Connection | Max Temp | Certification |
| e28S-3-208-1P | 9,985 | 208 | 1 | 48 | NEMA 6-50 1 Phase Plug with 6 ft cord | Cone 10, 2350F, 1290C |
Made for all markets except EU; Not CE certified; c-MET-us listed to UL499 standards in US and Canada |
| e28S-3-208-3P |
9,985 |
208 | 3 | 41.6 | NEMA 15-50 3 Phase Plug with 6 ft cord | Cone 10, 2350F, 1290C |
Made for all markets except EU; Not CE certified; c-MET-us listed to UL499 standards in US and Canada |
| e28S-3-240-1P |
11,500 |
240 | 1 | 47.9 | NEMA 6-50 1 Phase Plug with 6 ft cord | Cone 10, 2350F, 1290C |
Made for all markets except EU; Not CE certified; c-MET-us listed to UL499 standards in US and Canada |
| e28S-3-240-3P | 11,500 | 240 | 3 | 41.5 | NEMA 15-50 3 Phase Plug with 6 ft cord | Cone 10, 2350F, 1290C |
Made for all markets except EU; Not CE certified; c-MET-us listed to UL499 standards in US and Canada |
Electrical Specifications for Kilns
The table above outlines the available electrical specification choices for this kiln. It is crucial to select the appropriate wiring specifications when ordering the kiln to ensure its proper functioning. These specifications depend on the power supply to which you'll be connecting the kiln. Consult with your electrician to determine the correct voltage and phase for your specific kiln model. The voltage/phase selection directly impacts the amperage draw of the kiln and dictates the size of the necessary breaker. Remember that the kiln requires a breaker rated at 20% higher than the actual amperage draw. Ensure that your power supply can adequately support the kiln you intend to purchase. Additionally, the chart indicates whether the kiln requires a NEMA plug configuration or if it must be directly wired. Confirmation of voltage and phase selection is required in writing for all kiln orders. If you have any queries regarding this information, please don't hesitate to contact us at 215-768-1330 or info@allkilnservices.com.
