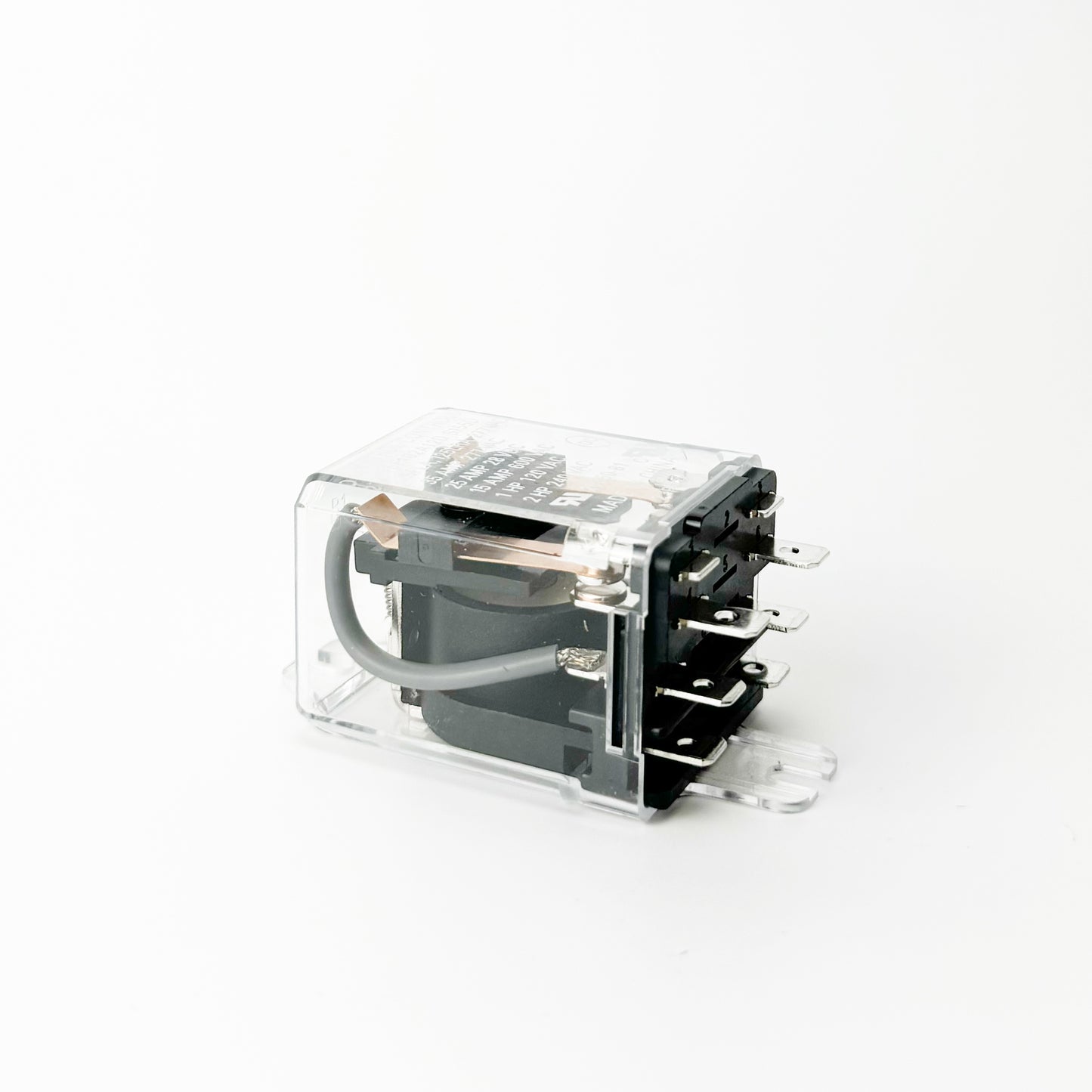

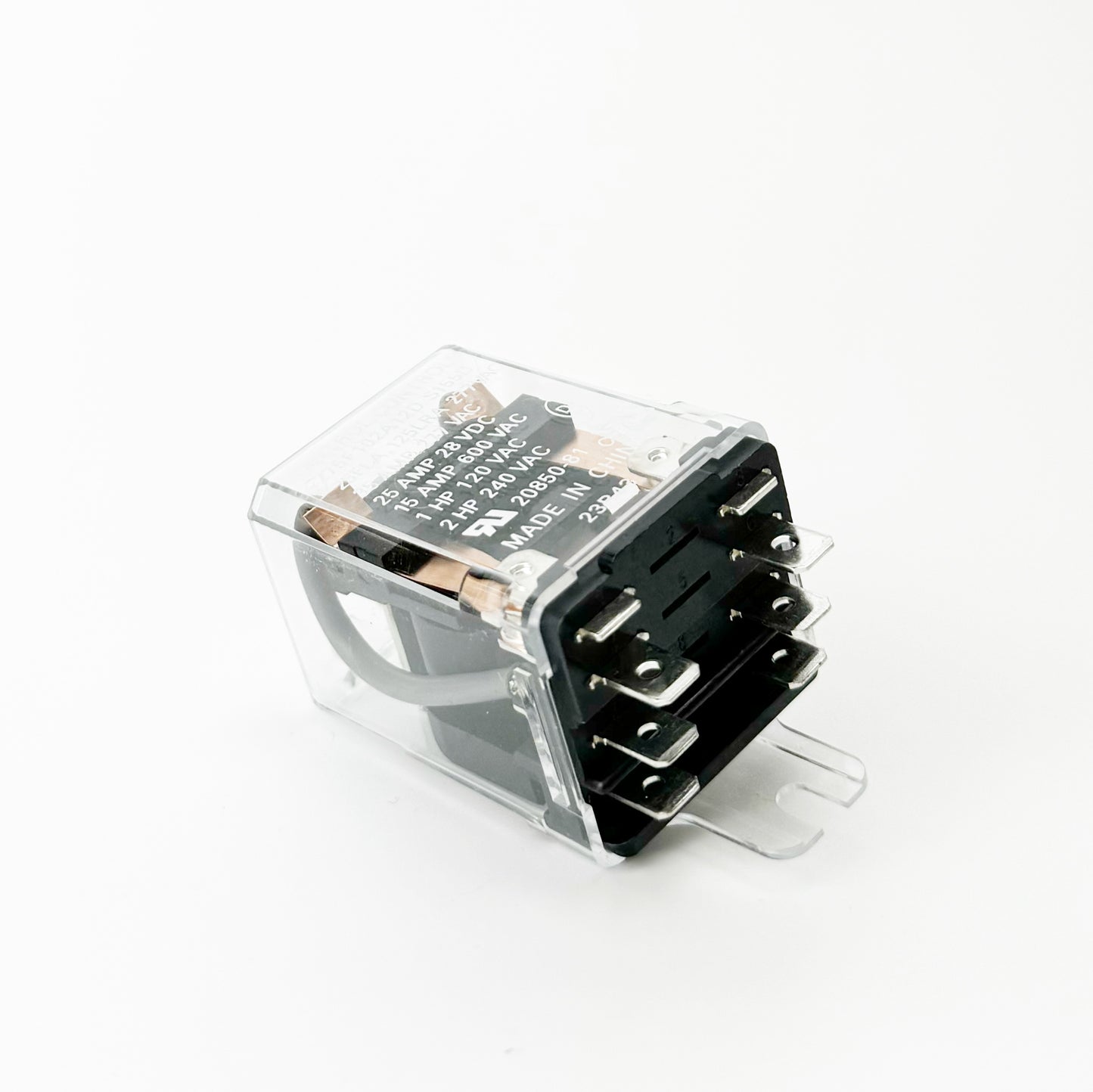

Deltrol Relay for Skutt Kilns

Fits models: 12V, 25amp Deltrol relays work in both 240V and 208V kilns

Size: 3" L x 1 1/2" W x 1 3/8" H

Using it:

Genuine, Deltrol relays are typically found in older digitally controlled kilns.

These relays are OEM factory replacement for many older Skutt KM, digital kilns (KM 1027, KM 1227, KM 1018, etc.) with 5 fins on the top of the control box. If your control box has 6 fins you likely need the black relays (we have them!).

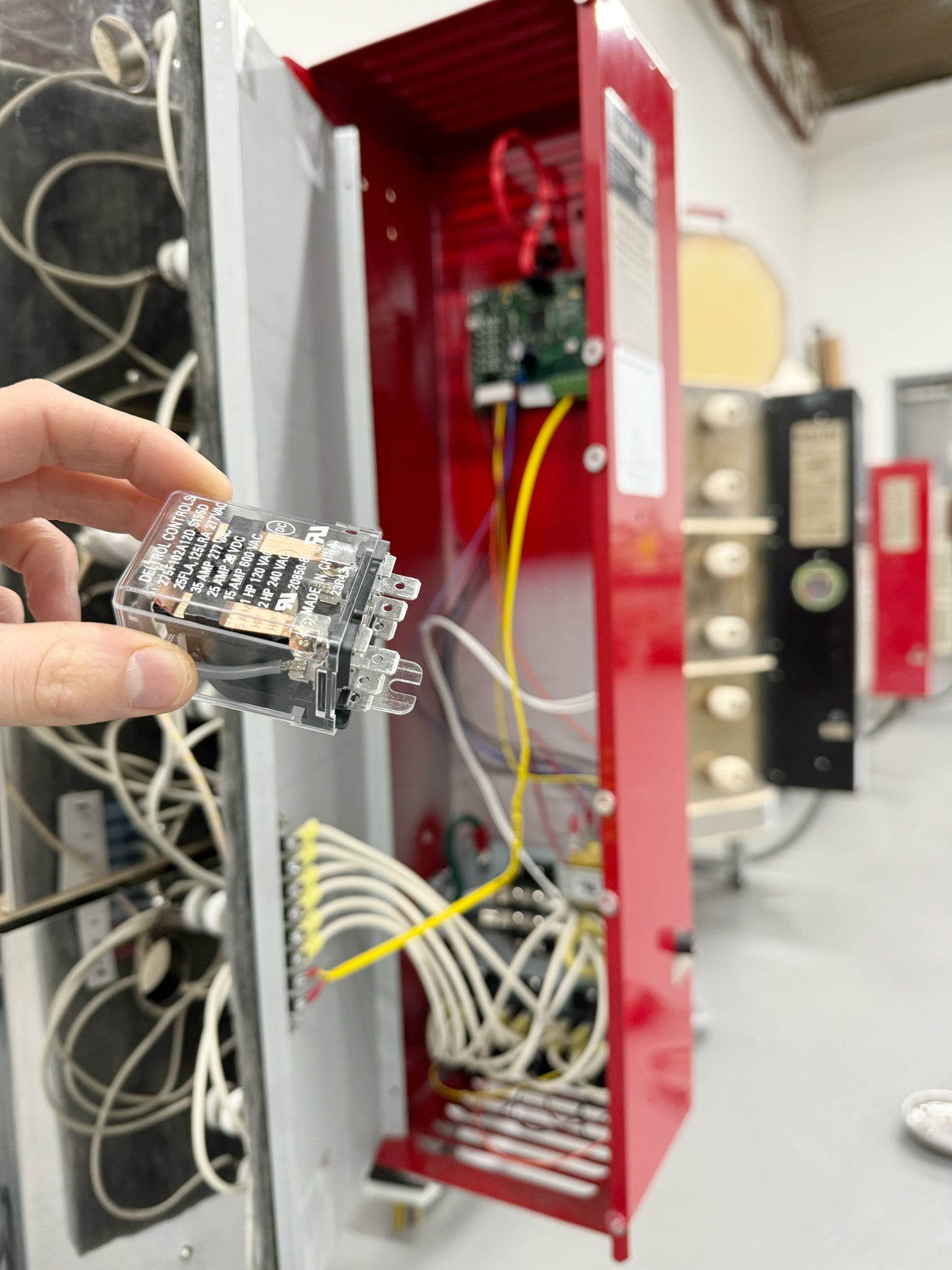

Typically one relay powers each ring, or section of kiln in a top-loader - a 3 section kiln (with 6 elements) will have 3 of these relays per kiln.

These are also factory relays found in many older Amaco front loading kilns and older Amaco/Excell top loading kilns.

These are direct factory replacements!

These aftermarket parts have been tested extensively by AKP on Skutt kilns and are high quality at a considerable savings compared to factory parts.

These Deltrol relays fit the following Skutt and Amaco/excel top-loading kilns with              5 FINS ON THE CONTROL BOX:

SKUTT: KM-818, KM-822, KM-827, KM-1018, KM-1022, KM-1027, KM-1218, KM-1222, KM1227

AMACO/EXCEL: EX-232, EX-257, EX-365, EX-329, EX-270, EX-353, EC-55, EC-55SF

AMACO FRONT LOADING KILNS: AH-10SF, AH-25SF, AH-30SF
