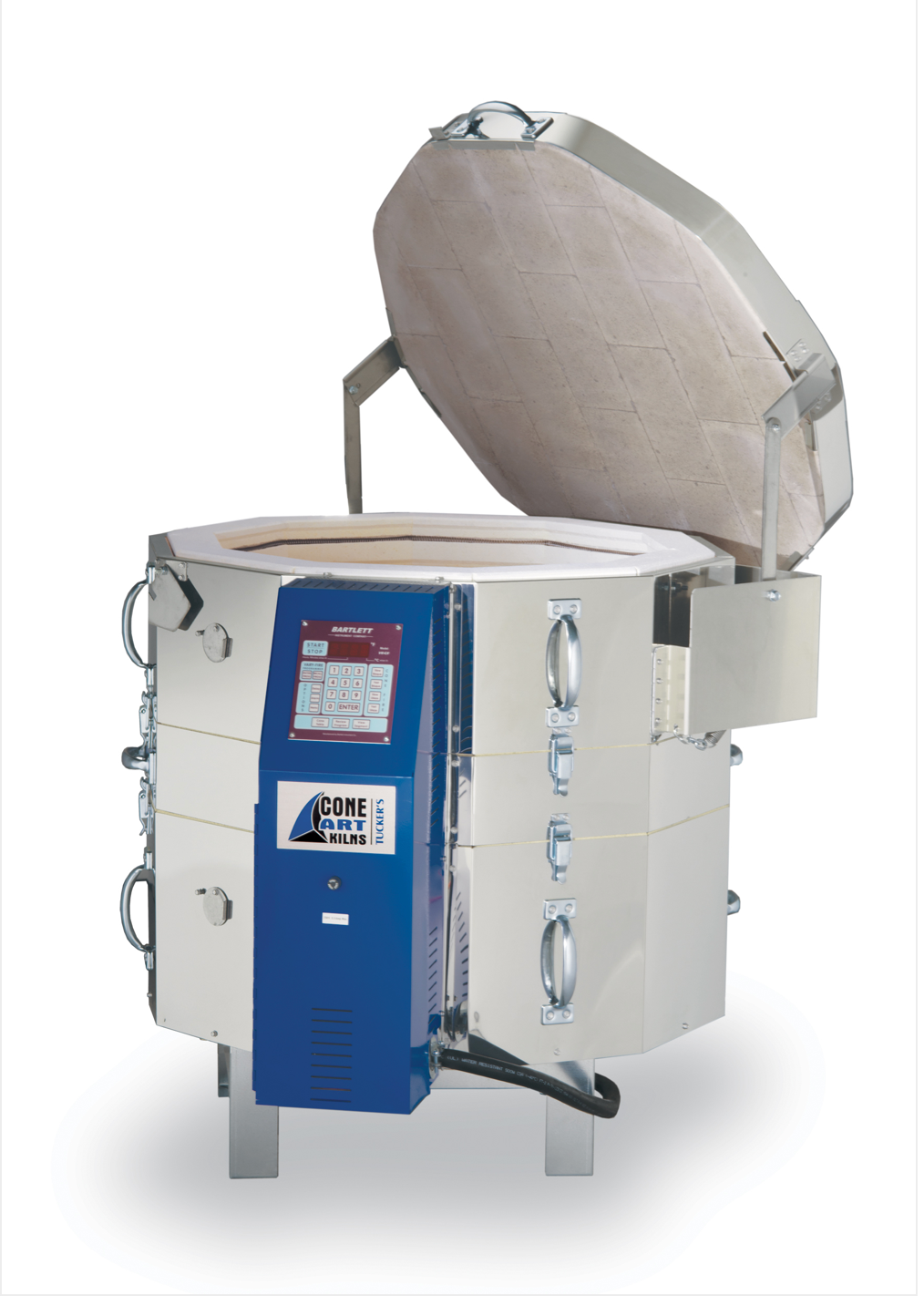

About Cone Art Kilns
Cone Art has been making kilns that are known for reliable, worry-free firing – easily to Cone 10 – with even temperature top to bottom and the best energy savings in the business.
All Cone Art kilns are made-to-order and take approximately 10-12 weeks.

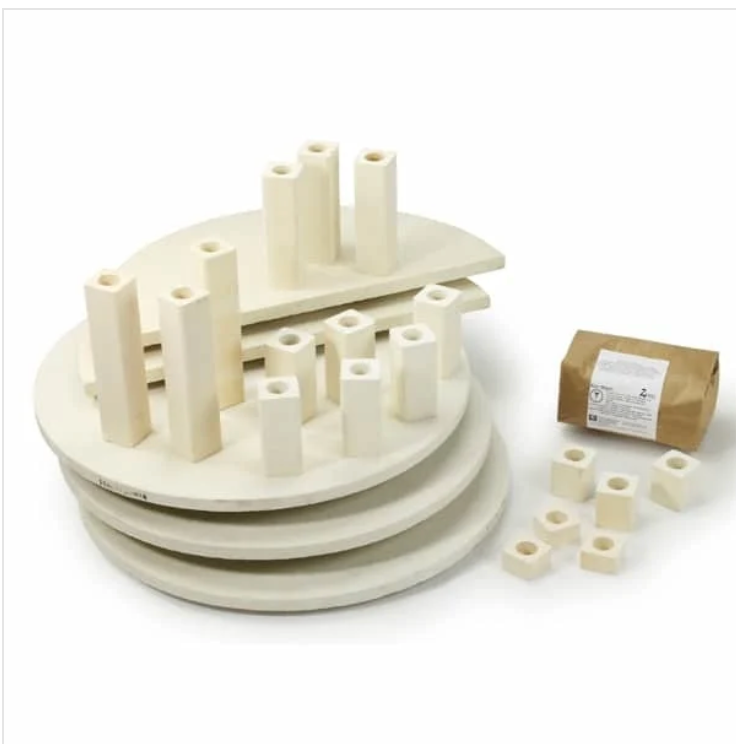

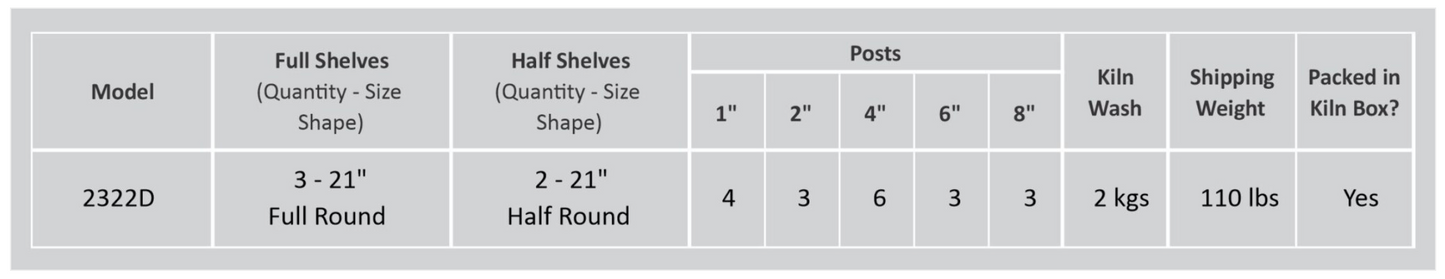

Optional furniture kit includes:
- 3 - 21" full round shelves, 2 - 21" half round
- 19 ceramic posts (4 - 1", 3 - 2", 6 - 4" 3 - 6", 3-8")
- 2kg kiln wash
- Shipping weight 110 lbs
Furniture kit + $340.00, Orton VentMaster + $690.00, Controller Integrated Orton Vent +$760.00.
Cone Art Furniture kits will have an additional tariff added once order is placed. Please reach out beforehand to get an estimate.

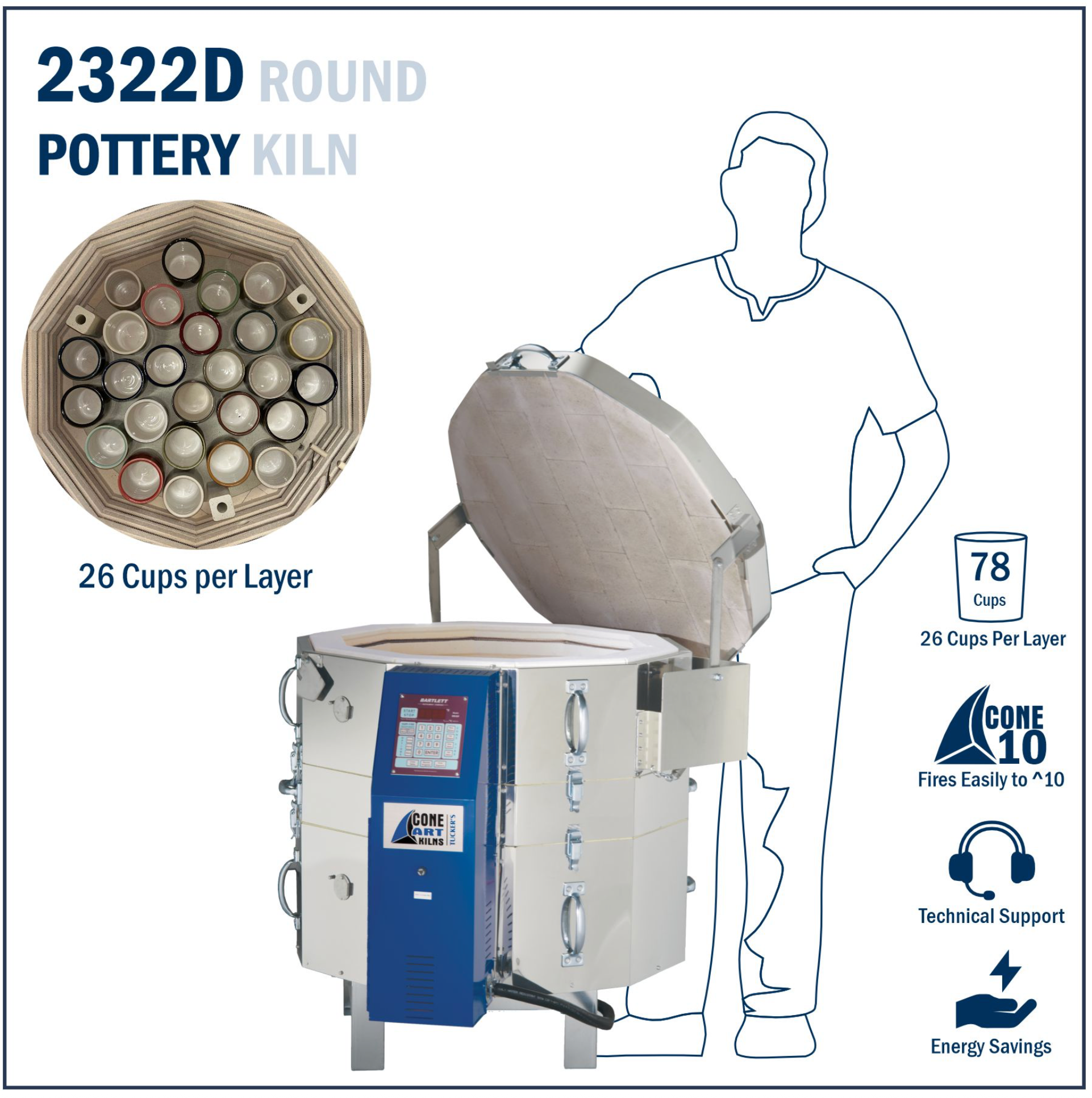

| Kiln model | 2322D |
| Interior dimensions | 23.5"w x 22.5"h |
| Exterior dimensions | 30.5"w x 27.5"h |
| Sections | 2.5, 5.83 cubic ft. |
| Elements | 6 |
| Thermocouples/Zones | 3 |
| Brick | 3" |
| Weight | Shipping weight 310 lbs |

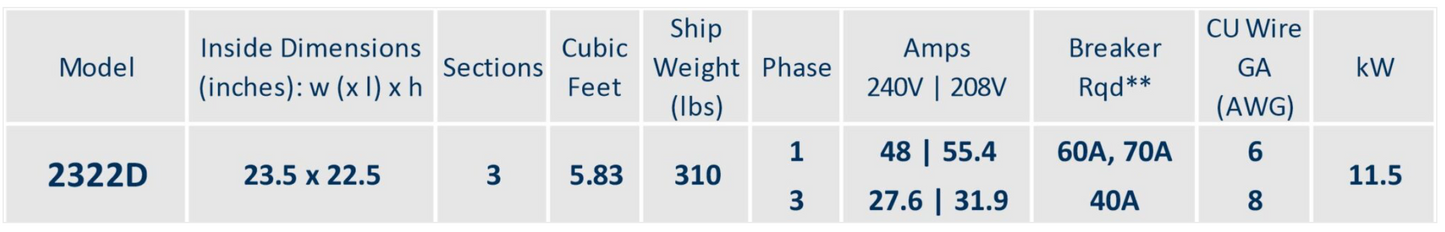

| Model | Watts | Volts | Phase | Amps | Wire Connection | Max Temp | Certification |
|
2322D 208/1PH |
11.5 kw | 208 | 1 | 55.4 | Hardwire |
Cone 10,2350F, 1290C |
CSA/cUL approval for use in Canada and the USA. They also hold CE approval for use in Europe. |
|
2322D 208/3PH |
11.5 kw | 208 | 3 | 31.9 | Hardwire |
Cone 10,2350F, 1290C |
CSA/cUL approval for use in Canada and the USA. They also hold CE approval for use in Europe. |
|
2322D 240/1PH |
11.5 kw |
240 | 1 | 48 | Hardwire | Cone 10, 2350F, 1290C | CSA/cUL approval for use in Canada and the USA. They also hold CE approval for use in Europe. |
|
2322D 240/3PH |
11.5 kw | 240 | 3 | 27.6 | Hardwire | Cone 10, 2350F, 1290C | CSA/cUL approval for use in Canada and the USA. They also hold CE approval for use in Europe. |
Electrical Specifications for Kilns
The table above outlines the available electrical specification choices for this kiln. It is crucial to select the appropriate wiring specifications when ordering the kiln to ensure its proper functioning. These specifications depend on the power supply to which you'll be connecting the kiln. Consult with your electrician to determine the correct voltage and phase for your specific kiln model. The voltage/phase selection directly impacts the amperage draw of the kiln and dictates the size of the necessary breaker. Remember that the kiln requires a breaker rated at 20% higher than the actual amperage draw. Ensure that your power supply can adequately support the kiln you intend to purchase. Additionally, the chart indicates whether the kiln requires a NEMA plug configuration or if it must be directly wired. Confirmation of voltage and phase selection is required in writing for all kiln orders. If you have any queries regarding this information, please don't hesitate to contact us at 215-768-1330 or info@allkilnservices.com.
