About Olympic Kilns
Olympic Kilns Medallion Series (MAS) are designed to save money with a green control box! All models are designed for high-fire Cone 10 and have 3" brick for energy consummation and efficiency.
All Olympic kilns are made-to-order and take approximately 12-15 weeks.

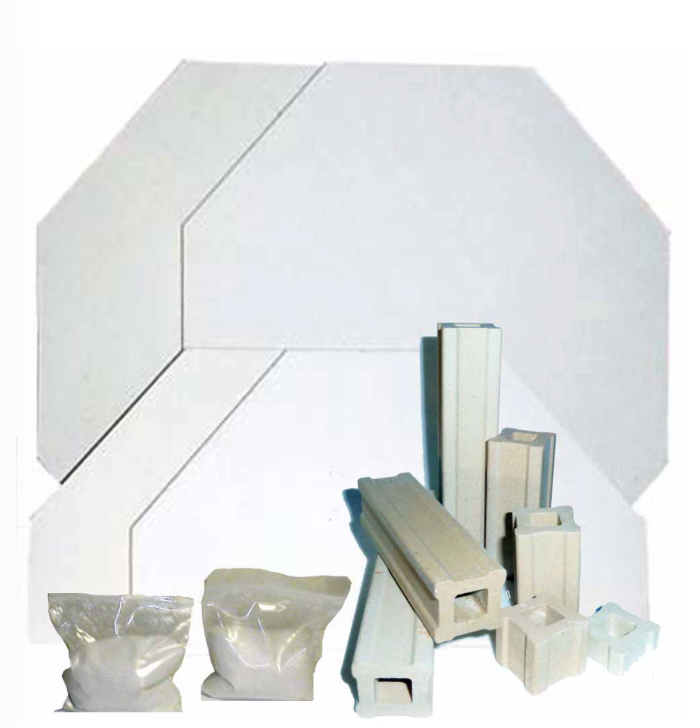

Optional furniture kit includes:
- One 15.5" x 16.5" octagon shelve, Four 1.5" x 73/4" half shelves
- 18 ceramic posts (6 - 4", 6 - 6", 6 - 8")
- 1 lbs kiln wash
- Shipping weight 100 lbs
Furniture kit + $243.00, + Orton VentMaster + $690.00
$100.00 flat rate freight shipping - This does not include add on services; lift-gate, call before services or delivery appointments. Please email info@allkilnparts.com if you'd like to add these services.
| Kiln model | MAS 1818 HE |
| Interior dimensions | 17.5"w x 18"h |
| Exterior dimensions | 31.5"w x 23"h |
| Sections | Two sections, 2.63 cubic ft. |
| Elements | 4 |
| Thermocouples/Zones | 1 |
| Brick | 3" |
| Weight | Shipping weight 185 lbs |
| Model | Watts | Volts | Phase | Amps | Wire Connection | Max Temp | Certification |
|
MAS 1818HE 208/1PH |
n/a | 208 | 1 | 24 | NEMA 6-30 |
Cone 10,2350F, 1290C |
CSA/cUL approval for use in Canada and the USA. They also hold CE approval for use in Europe. |
|
MAS 1818HE 240/1PH |
n/a |
240 | 1 | 21 | NEMA 6-30 | Cone 10, 2350F, 1290C | CSA/cUL approval for use in Canada and the USA. They also hold CE approval for use in Europe. |
Electrical Specifications for Kilns
The table above outlines the available electrical specification choices for this kiln. It is crucial to select the appropriate wiring specifications when ordering the kiln to ensure its proper functioning. These specifications depend on the power supply to which you'll be connecting the kiln. Consult with your electrician to determine the correct voltage and phase for your specific kiln model. The voltage/phase selection directly impacts the amperage draw of the kiln and dictates the size of the necessary breaker. Remember that the kiln requires a breaker rated at 20% higher than the actual amperage draw. Ensure that your power supply can adequately support the kiln you intend to purchase. Additionally, the chart indicates whether the kiln requires a NEMA plug configuration or if it must be directly wired. Confirmation of voltage and phase selection is required in writing for all kiln orders. If you have any queries regarding this information, please don't hesitate to contact us at 215-768-1330 or info@allkilnservices.com.
