Bartlett Genesis 2.0 Controller

Fits models: This genesis controller can be upgraded from any kiln that uses KilnStar V6CF. This controller can be programmed for multiple zones, different types of thermocouples and temperature.

- Touch-screen technology for the user interface
- Different user-interface levels, which can be set to match the user’s firing knowledge

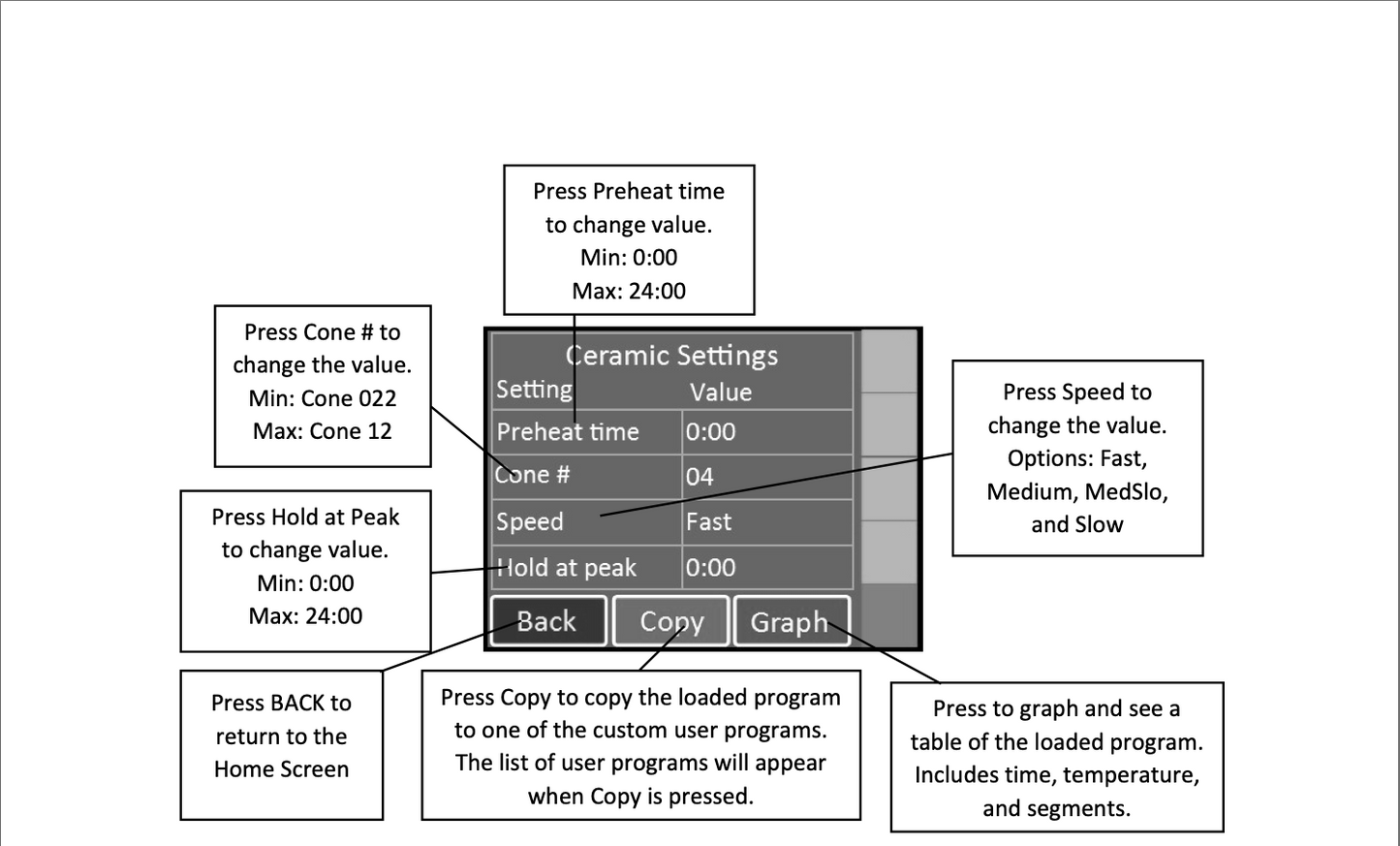

- Graphical display of the firing process right at the controller
- Store up to 12 custom user programs
- Up to 32 segments per program
- Ability to make adjustment during a firing such as add segments, add temperature, and skip segments
- Alarm
- Error Codes
- WiFi enabled for easy software updating

Size: 3.625" x 4/5"

Using it: Different makes and models of kilns require different confirmations of thermocouple types, thermocouple numbers (zones) and temperature. A Bartlett controller can often be added as an upgrade to many electric kilns, but it must be compatible with the kiln’s wiring, voltage, relays, and thermocouple setup to work properly.

Can be found in: L&L, Skutt, Olympic, Cone Art, Evenheat, Amaco/Excel, Jen-Ken and Paragon kilns.

L&L E14S-3, L&L E18S-3, L&L E18M-3, L&L E18T-3, L&L E23S-3, L&L E23M-3, L&L E23T-3, L&L E28S-3, L&L E28M-3, L&L E28T-3, L&L SM23T-3, L&L EQ2327-3, L&L EQ2827-3, L&L PLUG-N-FIRE, L&L Doll Test, L&L Jupiter Series.

Skutt KM818, Skutt KM1018, Skutt KM1027, Skutt KM1218, Skutt KM1227, Skutt KM1231, Skutt KM1627.

Cone Art 119 D, Cone Art 1813D, Cone Art 1818D, Cone Art 1822D, Cone Art 2318D, Cone Art 2322D, Cone Art 2327D, Cone Art 2818D,  Cone Art 2827D, Cone Art 2822D, Cone Art 2322D SQ, Cone Art 2327D SQ, Cone Art 2336D, Cone Art 4227D, Cone Art 4222D.

Olympic MAS 1818HE, Olympic MAS1823HE, Olympic MAS2323HE, Olympic MAS 2327HE, Olympic MAS 2823HE, Olympic MAS 2827HE, Olympic FL4.5E, Olympic FL5.5E, Olympic FL8E, Olympic FL10E, Olympic FL12E.
